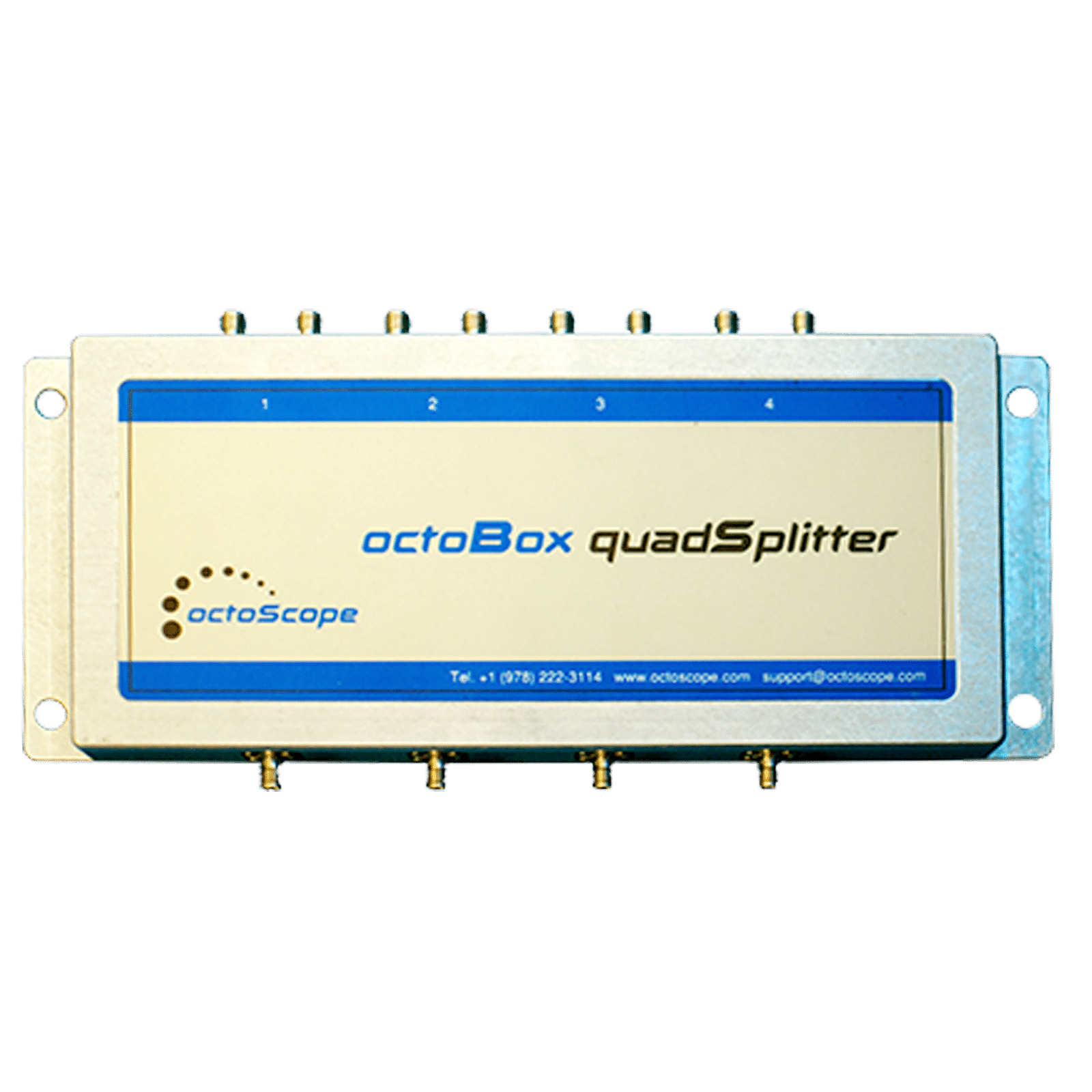

OB-4WAY: 4×4 MIMO 1:4 Splitter

Name: 4x4MIMO 1:4 splitter/combiner combines 4 4×4 MIMO RF ports into one.
Brand: octoScope
SKU: ob-4way-4x4
Rating: 5 (1 reviews)

octoScope

Combines four 4x4 MIMO RF ports into one

Request a demo

Frequency range: 700 MHz to 6 GHz
Connectors: SMA
Insertion loss (above theoretical 6 dB): 1 dB typ.
Phase unbalance: 2 degrees typ.
Amplitude unbalance: 0.1 dB typ.
VSWR: 1.2 typ.
Power Input (as a splitter): 10W max.
Internal Dissipation: 1.2W max.
DC Current (each port): 1A max.
Completely isolated from outside interference

Applications

Wi-Fi (802.11a/b/g/p/n/ac), Bluetooth, D-LTE and LTE-Advanced testing
octoBox testbeds, including Video over Wi-Fi and multi-room house
Roaming
Mesh
Wi-Fi Alliance certification

The octoBox® 4x4MIMO1:4 splitter/combiner module combines four 4×4 MIMO RF ports into one. Conveniently mountable to the side of the octoBox, the 4x4MIMO1:4 module can be used for the octoBox roaming testbed and for creating wireless testbeds with multi-device topologies that require MIMO devices to be coupled together.

This module is completely isolated from outside interference and is specifically designed for use in high isolation octoBox testbeds.
