OB-2WAY-SW: 1:2 quadSwitch

1:2 RF switch module
  • Frequency range: 500 MHz to 6 GHz
  • Connectors: SMA
  • Insertion loss: 4 dB typ. At 6 GHz
  • 1 dB compression: 30 dBm
  • IP3: 55 dBm
  • Completely isolated from outside interference
  • Powered and controllable via PoE
  • RF switch module

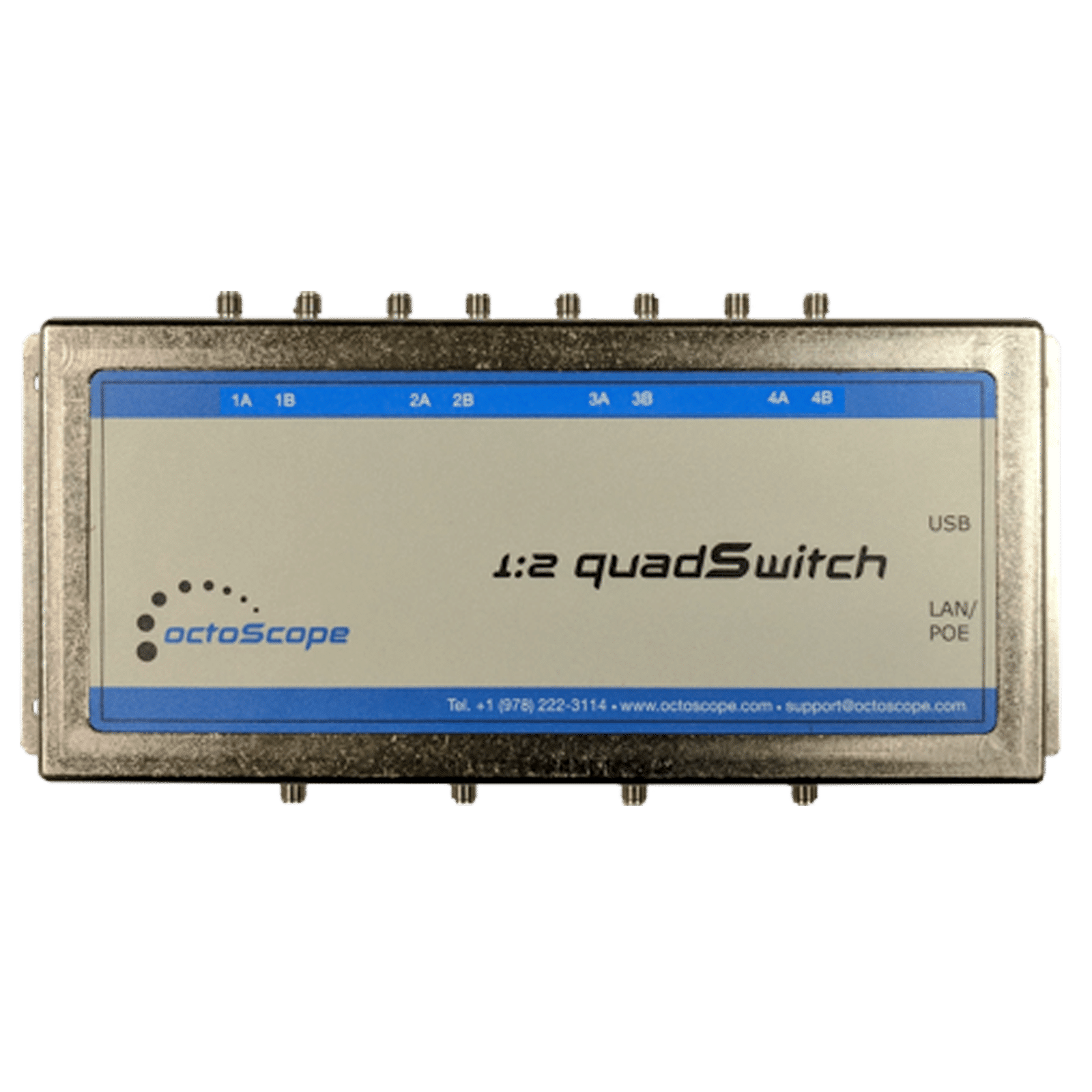

The 1:2 quadSwitch quad single pole doublet throw (SPDT) RF switch module.

Conveniently mountable to the side of the octoBox®, the 1:2 quadSwitch module is used for automatically reconfiguring the octoBox wireless personal testbed for a variety of test configurations.

This module is completely isolated from the outside interference and optimized for use in octoBox personal testbeds.

Data sheet
