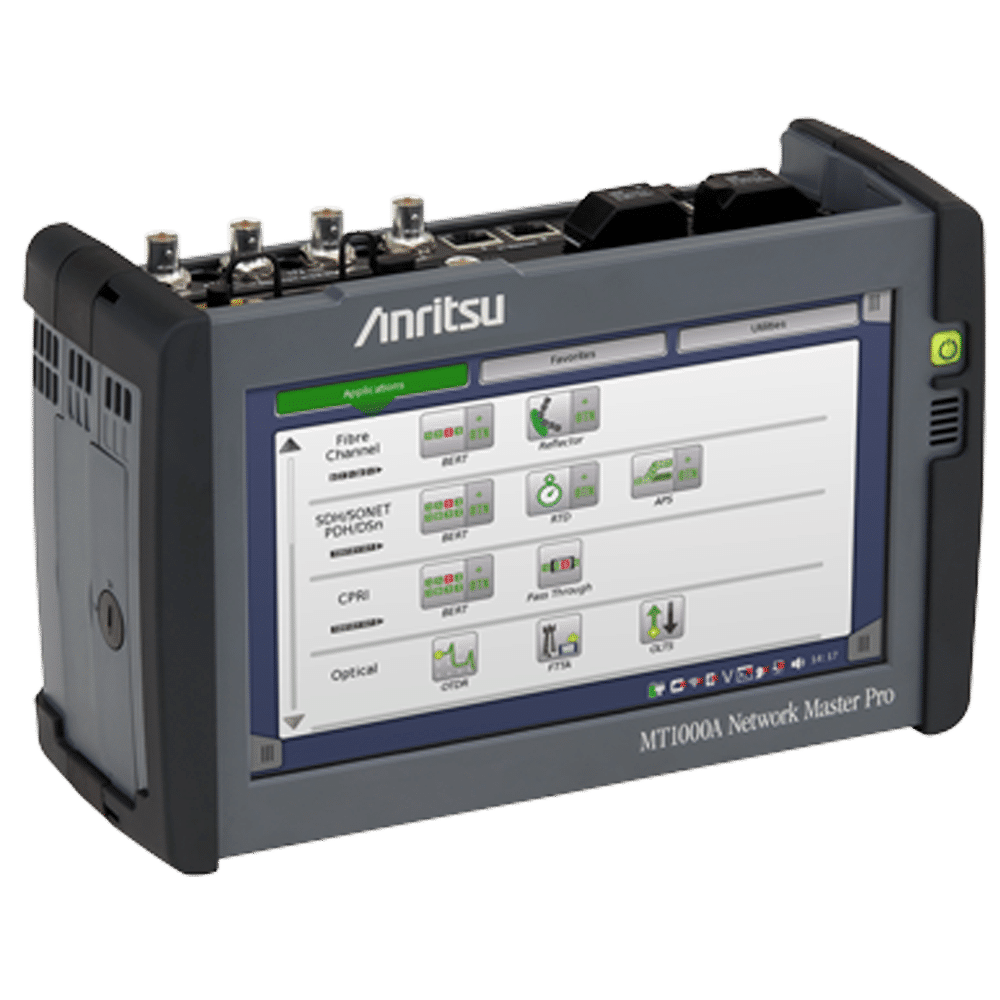

MT1000A Network Master Pro

Portable test for 10/100G, PDH, SDH, OTN, Sync, OTDR and CPRI tests.
  • All-in-one field transport tester – supports testing from 1.5 Mbps to 100 Gbps
  • Metro and core networks OTN installation and maintenance
  • Carrier Class Ethernet installation and troubleshooting
  • Mobile backhaul installation and verification
  • Mobile fronthaul installation and verification
  • Powerful Storage Area Networking (SAN) testing
  • Quick and easy testing of SDH/SONET and PDH/DSn networks
  • Testing of client signals mapped into OTN
  • Easy and intuitive GUI
  • Dual port at all rates
  • WLAN*/Bluetooth*/LAN connectivity
  • PDF, CSV and XML report generation for documentation of test results
  • Remote operation (VNC), dedicated remote GUI software and remote control (scripting)
  • Optical connector inspection

The compact, battery-powered and easy-to-use Anritsu MT1000A provides everything needed to install and maintain communication networks in a rugged, field portable package. This lightweight instrument simplifies the daunting task of collecting and interpreting data with an easy-to-use GUI and clear summaries allowing users of any skill level to operate the instrument to its full potential.

The MT1000A is multi-function tester that can be configured with an array of transport testing functions and OTDR modules to ensure you have the tools you need today plus the expandability for future technologies – all of which are field upgradeable.

  • Verify proper fibre installation and fibre loss characteristics are within the specified budget
  • Fibre Visualizer simplifies testing with an easy to read graphical summary of the results
  • Ability to toggle between graphical summary and traditional OTDR trace
  • Specialised testing modes simplify operation
  • High resolution and dynamic range ensure quick and thorough fibre evaluation
  • Intelligent analysis software identifies problem splices, connectors and even macrobends
  • Test multiple wavelengths with a single unit
  • One button PDF report generation
  • Standard power meter and light source
  • Visual fault locator option
  • Verify fibre end face condition (dust, scratches) and cleanliness with optional connector inspection microscope
Carrier Ethernet Installation and TroubleshootingA comprehensive solution for easy testing, installing and faster troubleshooting of Ethernet lines up to 100 Gbps which can help lower operating costs such as cutting additional truck rolls, tech support calls and customer churn to improve operating expenses.
Comprehensive OTN Testing for Metro and Core NetworksSupports testing of OTN lines at the client signal level with Ethernet, CPRI, Fibre Channel and SDH/SONET signals.
Mobile Backhaul Installation and VerificationSupports Synchronous Ethernet testing and analysis of both Synchronous Ethernet technologies: SyncE (ITU-T G.826x) and PTP (IEEE 1588 v2). The user can quickly identify problems at all levels in Synchronous Ethernet, solving issues quickly, reducing system downtime and customer churn and improving operating expenses for mobile operators.
Mobile Fronthaul Installation and VerificationSupports from eCPRI/IEEE1914.3 frame(up to 100 Gbps), CPRI interface rate option 1 (614.4 Mbps) to option 10 (24.3302 Gbps) and OBSAI from 768 Mbps to 6.144 Gbps. This ensures testing of all current and future requirements
