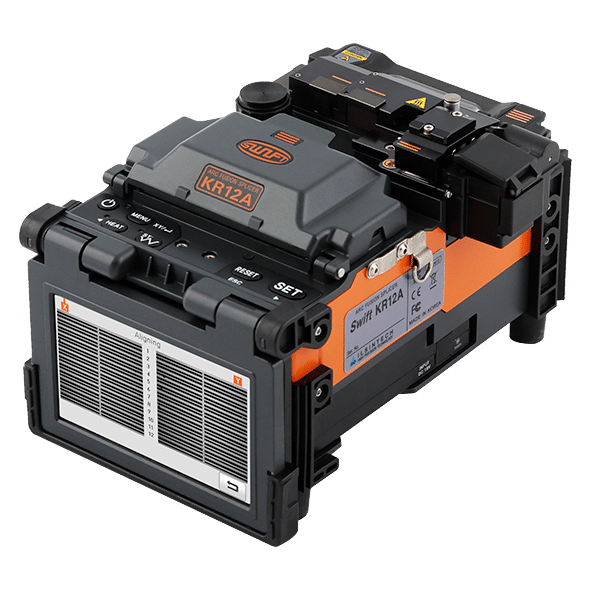

KR12A All-In-One Ribbon Fibre Splicer

UCL Swift

Automated all-in-one fusion splicer for superior quality ribbon fibre splices

KR12A all-in-one ribbon fire splicer
Integrates 5 functions in one unit (stripping, cleaving, cleaning, splicing and splice protection)
Automatic Thermal Stripper - No scratches on, tensile strength - Telcordia standard 1.7kgf or more
Resistant to shock, dust and water
Dimensions: 142 (W) x 219 (L) x 137 (H)
Weight: 2.45 kg (including battery)
Electrode life: up to 1500 splices
Rotating blade life: up to 2,000 times for 12F ribbon fibre (optional 4,200 times for 12F ribbon fibre)

The KR12A All-In-One ribbon fibre splicers supports 5 separate fibre deployment functions in a single tool, reducing installation time and improving splice reliability.

Automated Fibre Stripping

Automated stripping ensures no scratches from heated stripping
1 second strip time
Over 5 kgf tensile strength of fiber after stripping.Featuring excellent tensile force of fiber, the automatic stripper strips up to 28mm in length without damaging the surface of fiber

Cleaning

One-touch pump.The alcohol pump can be removed and refilled with cleaning fluid

Cleaving

Single-action cleaving.
75,000 fibre cleaves with automatic rotating blade.
Cleaves fibre at a 90 degree angle.
Built in sharps box for collecting fibre chards

Splicing

Automatic splicing from 1 core to 12 cores.
Electrode life of up to 18,000 splices.

Splice protection

30 second shrink protector application time.
Equipped with a sleeve loader to prevent contamination.
Reduced splicing time with built-in sleeving unit.
