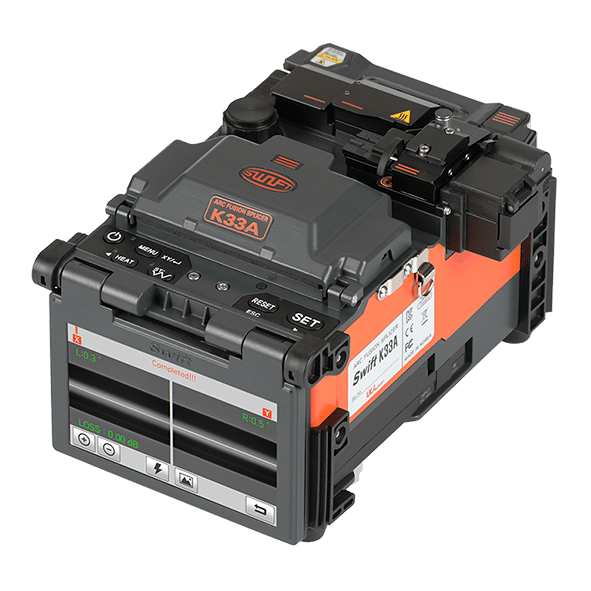

K33A All-In-One Core Alignment Splicer

UCL Swift
All-in-one fusion splicer supporting stripping, cleaving, splicing and splice protection in a single unit
  • K33A with All-In-One system provides the best workability
  • Integrated 5 functions in one unit (Stripping, cleaving, cleaning, splicing and splice protection)
  • Automatic Thermal Stripper - No scratches on, tensile strength - Telcordia standard 1.7kgf or more
  • Providing remote maintenance service via Internet
  • Resistance to Shock, Dust and Water
  • Dimensions: 142 (W) x 219 (L) x 137 (H)
  • Weight: 2.45 kg (including battery)
  • Electrode life: up to 18,000 splices
Low maintenance - 75,000 cleaves without adjustment Superior electrode life - 18,000 splices Built-in thermal stripping tool provides excellent tensile strength

The K33A All-In-One Core to Core Alignment fusion splicers supports 5 separate fibre deployment functions in a single tool, reducing installation time and improving splice reliability.

Automated Fibre Stripping
  • Automated stripping ensures no scratches from heated stripping
  • 1 second strip time
  • Over 5 kgf tensile strength of fiber after stripping.Featuring excellent tensile force of fiber, the automatic stripper strips up to 28mm in length without damaging the surface of fiber
Cleaning
  • One-touch pump.The alcohol pump can be removed and refilled with cleaning fluid
Cleaving
  • Single-action cleaving.
  • 75,000 fibre cleaves with automatic rotating blade.
  • Cleaves fibre at a 90 degree angle.
  • Built in sharps box for collecting fibre chards
Splicing
  • Automatic splicing from 1 core to 12 cores.
  • Electrode life of up to 18,000 splices.
Splice protection
  • 30 second shrink protector application time.
  • Equipped with a sleeve loader to prevent contamination.
  • Reduced splicing time with built-in sleeving unit.
