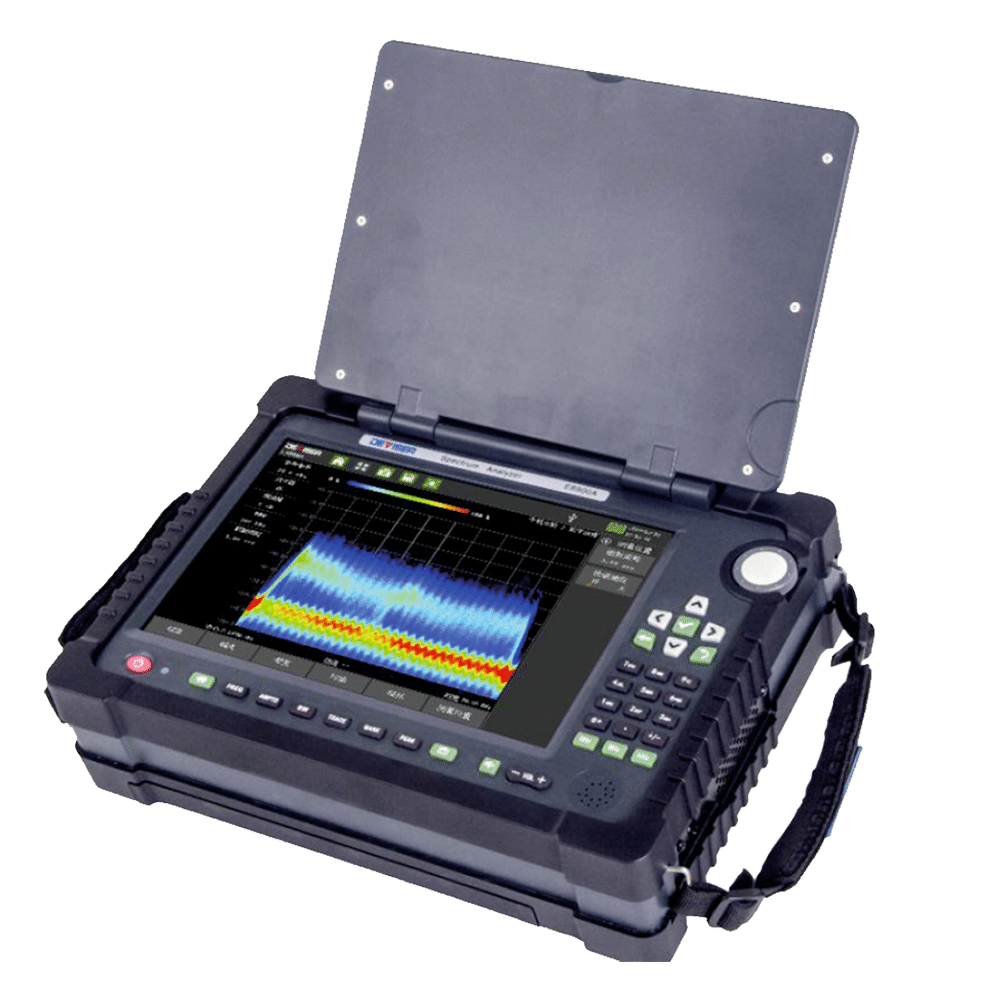

E8900A 5G Handheld Spectrum Analyzer

Name: E8900A 5G Handheld Spectrum Analyser
Brand: Deviser
SKU: E8900A
Rating: 5 (1 reviews)

Deviser

5G Handheld Spectrum Analyser

Request a demo

High-performance handheld analyzer for construction & maintenance of 5G NR systems
Frequency range 9 kHz ~ 9 GHz
High-speed analysis, measuring 30 GHz/s @ 7.8 kHz RBW
Test and demodulate 5G NR (FR1); TDD-LTE; FDD-LTE signals
IQ data acquisition
Internal and external antenna for max accuracy
Additional modes include spectrogram; DPS; gated sweep; GPS data for locating interference
Can support correlative interferometer DF antenna
10.1" capacitive touchscreen for easy control & visibility
Numerous data transfer options: LAN, USB, & more

The E8900A 5G New Radio (NR) handheld spectrum analyzer covers the landscape of new wireless communication technology with all-new levels of flexibility and efficiency for construction and maintenance of 5G NR systems.

Correlative interference analysis with interferometer DF antenna and GPS mapping can locate hard-to-isolate interference signals in max accuracy. Persistence spectrum analysis separates the in-band signal transmission from underlying low-level inference signals in supreme clarity without service interruption. FDD-LTE or TDD-LTE signal demodulation analysis includes channel power, cell ID, 4G frequency- or time- division multiple-access signal analysis, sub-frame spectrum, and special sub-frame indicators.

featureBlockTitle	featureBlockBody
Signal Scan Up To 9.0 GHz	The E8900A performs standard spectrum analysis up to 9,000 MHz and 5G NR analysis up to 6,000 MHz. Rapid sweeps help capture bursty signals in real time, and deep customization options allow both new and experienced technicians to zero in on key data. The built-in Interference Analyzer mode targets hard-to-isolate signals that can threaten a system's capacity and coverage. Use the 3D Spectrogram tool to monitor change in the signal environment over time.
Digital Persistance Spectrum	Persistence testing separates the intended signal transmission from underlying low-level inference signals with supreme clarity, with no service interruptions at any point.
TDD-LTE Testing	TDD-LTE demodulation analysis includes channel power, cell ID, 4G time-division multiple-access signal analysis, sub-frame spectrum, and special sub-frame demodulation indicators.
An All-New 5G Spectrum Test Suite	The E8900A's primary toolkit is built to elevate wireless service to the next level under the New Radio standard. It includes 5G-NR cell ID (PCI), SS-RSRQ, SSB constellation, SS-SINR power indicators, EVM demodulation indicators, and more. The 5G-NR Beam Analyzer is a key feature of the E8900A's new demodulation analysis suite. This mode is configured for Massive MIMO systems, enabling you to track and measure 8 beam IDs simultaneously. Use the Interference Detection mode with a directional antenna to hunt down ingress signals in a 360-degree swath. In conjunction with an external GPS antenna, conduct 4G & 5G outdoor drive tests to obtain signal maps of entire test sites.

Datasheet

Deviser E8900A Datasheet
