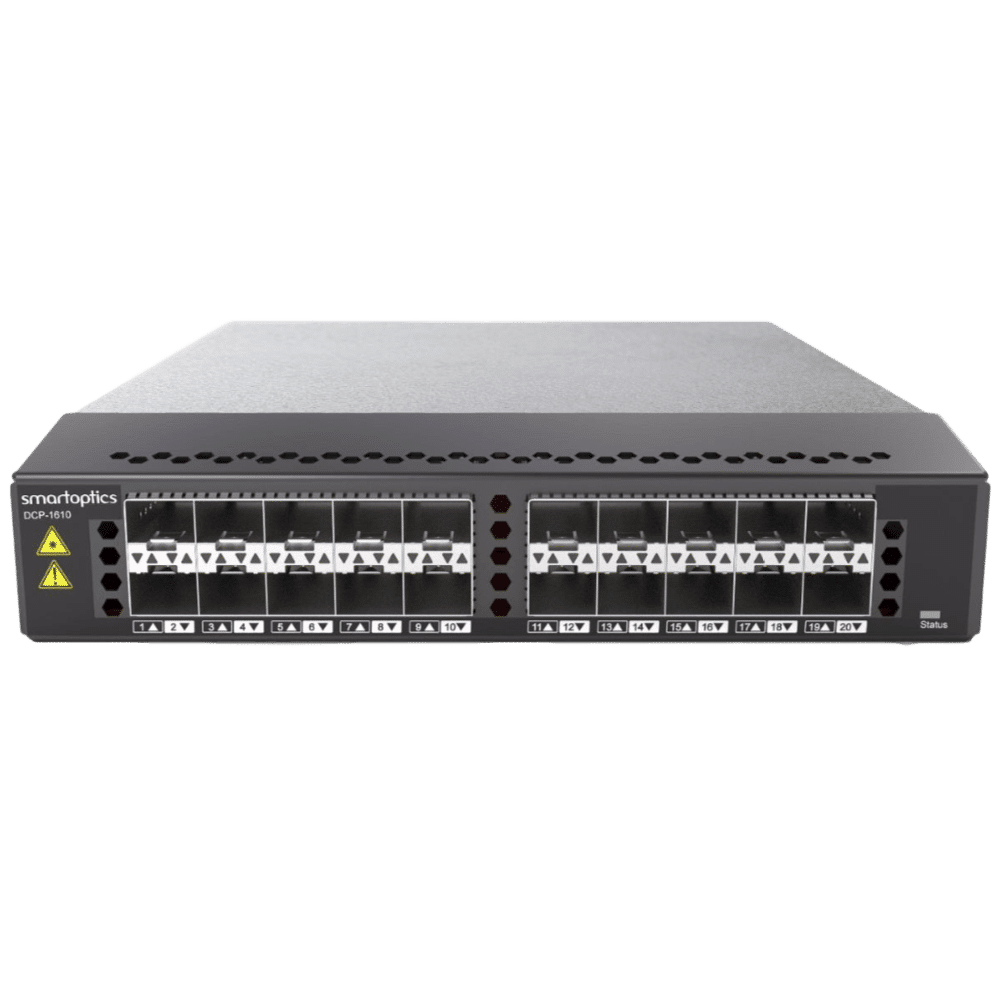

DCP-1610 – 10 channel transponder

SmartOptics
Versatile 1G/10G/40G & 8G/16G 10 channel transponder
  • Modular 1⁄2 width 1U ten channel transponder for use with DCP-2 modular xwdm system
  • 10G Ethernet (LAN & WAN)o 1G Ethernet
  • STM-64 & OC192
  • 16G Fibre Channel
  • 8G Fibre Channel
  • OTN line side protocol with/without GFEC G.709
  • Low power consumption
  • SFP+ interfaces, tunable DWDM, DWDM, CWDM, LR and SR
  • Encryption AES-256-GCM
  • Comprehensive client and line performance monitoring
  • PRBS traffic test
  • Plug and play operation
  • Front to back airflow
  • API, CLI, SNMP , GUI

DCP-1610 is a high density multi-channel multi-rate transponder module offering independent xWDM transponders suitable for 40/10/1G Ethernet and 16/8G Fibre Channel transport.

Each channel is independent of each other and there are no restrictions on combinations of traffic.

DCP-1610 is available with encryption and an OTN version offers FEC over OTU-2 or DWDM uplinks.
