Sessionmaster EXA32100

Cubro
Layer 7 packet broker with higher layer load balancing
  • Filters and load-balances traffic from 40 or 100-Gbps link to multiple 40-Gbps monitoring tools
  • Aggregates multiple 40 Gbps links to 100-Gbps monitoring tools
  • Supports traffic modification as well as changing, removing and adding VLANs, MPLS, VXLAN, NVGRE/MLAG/GENEVE
  • P4 language support
  • Layer 7 support

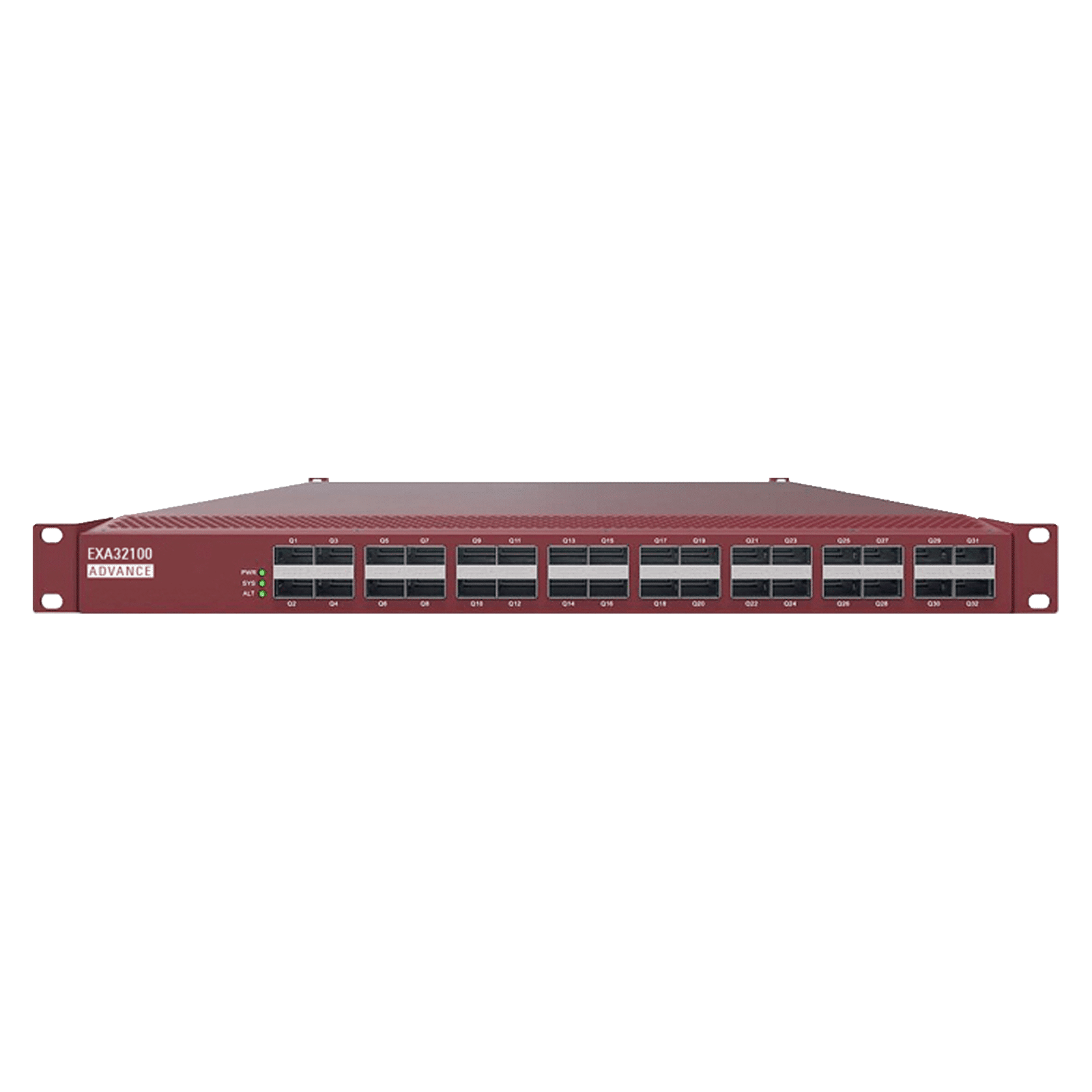

The Sessionmaster EXA32100 is a network packet broker and network controller switch that aggregates, filters and load balances network traffic sent to network monitoring, security and management tools. The Sessionmaster EXA32100 filters and load balances traffic from 40 to 100 Gbps links to multiple 40 Gbps monitoring tools or aggregates multiple 10 Gbps links to 40 or 100 Gbps monitoring tools. The central ASIC supports the latest technology features like P4 network description language for later advanced feature upgrade. The big manageable buffer size helps to overcome bursting issues in aggregation applications.

The EXA32100 features highly advanced technology. It is an advanced system which can handle billions of packets up to OSI layer 7.

The product is based on advanced chip design combined with a high-performance multi-core host controller. Additionally, the OS (operating system) is a fully innovative design that runs on this multicore host controller.

These features make the EXA32100 a special appliance not only for monitoring applications but also for load balancing in higher layers like GTP.
