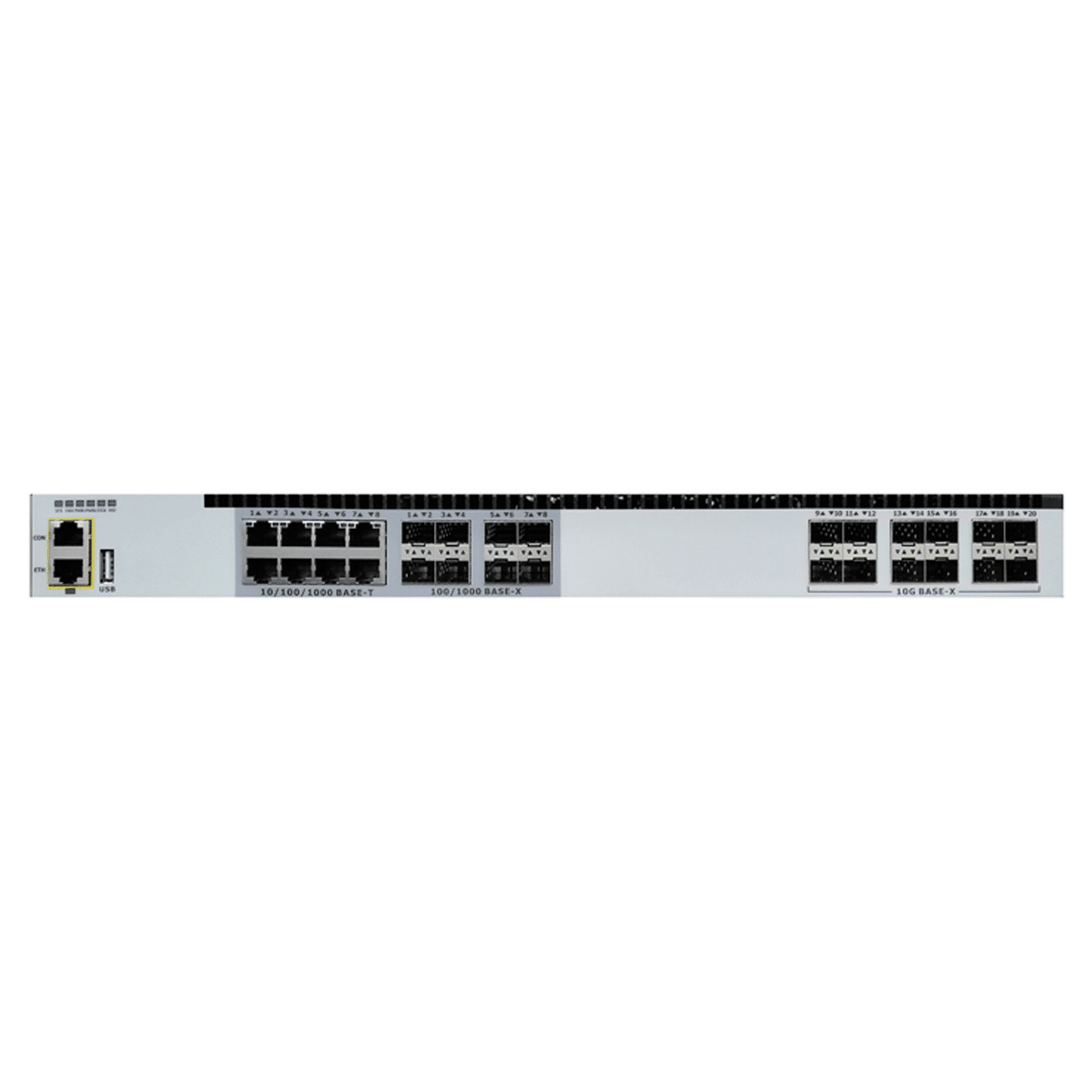

Packetmaster EX12

Cubro

Layer 4 packet broker with 8 x 1G and 12 x 10G interfaces.

Filters and load-balances traffic from a 10 Gbps link to multiple 1Gbps monitoring tools
Aggregates multiple 1 Gbps links to 10 Gbps monitoring tools
Supports traffic modification as well as changing, removing and adding VLANs
No additional port licensing fees or software feature licensing. All features and applications included in the unit price.
8 x 10/100/1000 Base-T or 8 x 1000 Base-X & 12 x 10 Gbit SFP+
IPv 6 support
Up to 2000 parallel rules

Finite Rule Life: Rules can be set with a timeout period where the rule will be removed automatically after a set period of time or a set period without traffic activity. Rules can be dynamically created via the REST API.
Generate sFLOWS CDRs: The EX12 is able to generate standard-conform sFlow information of the incoming traffic.
Easy to configure: Via Web GUI (HTPPS supported) GRE / VXLAN Tunnel support: The Packetmaster EX12,like all Packetmaster Series NPBs, can function as a GRE / VXLAN tunnel endpoint.
Load balancing: L2 / L3 / L4 hash-based, session aware load balancing, up to 15 load balancing groups
Cubro Vitrum Management Suite: EX12 is fully compatible with Cubro Vitrum, a centralized management platform for all Cubro network visibility solutions.

The EX12 is a packet broker designed to have a good price to performance ratio; the EX12 supports 12 x 10 Gbit interfaces and a combination of 8 native copper or 8 SFP interfaces for Gbit. As usual, this product utilizes non-blocking design and the use of thousands of filters is possible without impacting product function.
