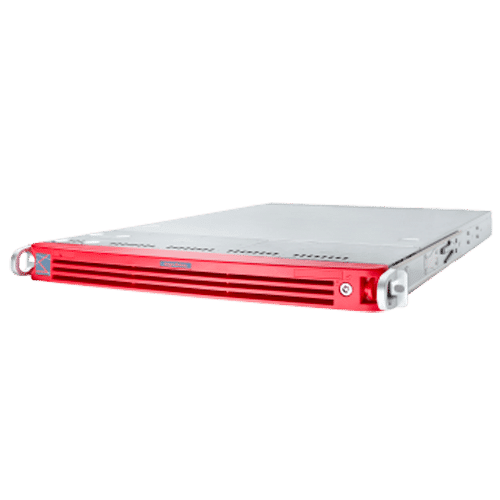

Allegro x300 Series

Allegro Packets
Enterprise Core Networks, Data Centers and ISP Network Testing
  • For Enterprise Core Networks, Data Centers and ISP Networks
  • Up to 3 extension slots
  • Up to 100 GBit/s max. throughput
  • 64 GB internal database memory, expandable up to 4 TB
  • Dynamic ring buffer, expandable up to 10 x 2.5" HDDs and 2 x U.2 SSDs
  • Up to 800,000 IP and 256 million connections
  • 437 mm long x 43 mm high x 597 mm deep
  • Weighs 20 - 30 kg

The x300 series, consisting of Allegro 1300, 3300 and 5300, is optimized for the analysis, monitoring, verification and troubleshooting of network connections from 1 G to 100 G. The systems are designed for very high capture recording, analysis and storage rates and allow retroactive verification of up to 800,000 IP adresses and up to 256 million connections. The Allegro Network Multimeter is ideal for use in large data centers, core networks and ISP infrastructures.

The Allegro x300 series is equipped with a back-in-time function and enables precise selection of the recorded information. The data can be extracted as pcaps as a browser download with a simple click. In addition, selected data can be individually reimported into the network, to recreate specific events or security incidents, e. g. with IDS / IPS systems.

The x300 series has multiple extensions for additional connections and storage options. The dual QSFP28 option allows up to 100 GBit/s of real-time traffic to be checked in 100 G environments. Alternatively, the number of ports can be increased to 12, selectable from 1 / 2.5 / 5 / 10 / 25 or 40 GbE Cu / SFP+ / QSFP ports. The memory size for processing historical data in the in-memory database is 64 GB in the base version and can be expanded up to 4 TB. The ring buffer for recording the traffic on a link or the selected data traffic enables the extraction of historical packets. The ring buffer can be dynamically expanded up to 10 x 2.5“ HDDs and 2 x U.2 SSDs.
